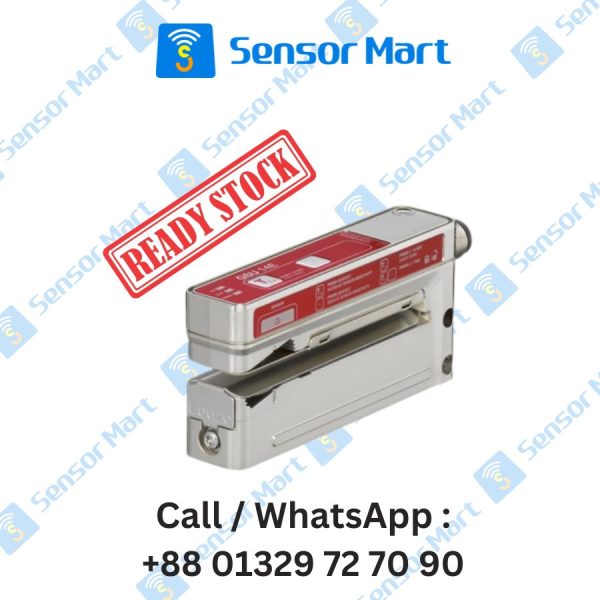

GSU14E/LGT.3-M12 , 50142875 Leuze Ultrasonic Fork Sensor

In Stock
Highlights:
  • Series 14
  • Principle of physics :- Ultrasonics
  • Label width, min. : 4 mm ,
  • Label gap, min. : 2 mm
  • Medium: Transparent and not transparent
  • Number of digital switching outputs: 2
  • Switching element: Transistor
Compare
Estimated Delivery: 1-3 Days
15 October - 17 October
Description

GSU14E/LGT.3-M12 , 50142875 Leuze Ultrasonic Fork Sensor

Ultrasonic Fork Sensor

Fork sensors combine transmitter and receiver into a single device and therefore feature high operational reliability. They are characterized by simple mounting without the need for alignment as well as high sensitivity. The fork sensors are used for detecting small parts or for detecting labels and print marks, even on transparent films.

Technical features:-

Special Version:-

Special version Manual fine tuning of the switching threshold

Teach input

Electrical Data:-

Protective circuit Polarity reversal protection
Short circuit protected

Performance Data:-

Supply voltage UB 18 … 30 V, DC
Residual ripple 0 … 10 %, From UB
Open-circuit current 0 … 60 mA, Typical value

Inputs:-

  • Teach Inputs:-
Type Teach input
Voltage type DC
Switching voltage high: ≥9V
low: ≤ 2 V
Input resistance 15,000 Ω
  • Teach Inputs 1:-
Active switching state High

Outputs:-

  • Switchings Outputs:-
Type Digital switching output
Voltage type DC
Switching current, max. 100 mA
Switching voltage high: ≥(UB-2V)
low: ≤ 2 V
Load capacity 0.01 µF
  • Switching Outputs 1:-
Switching element Transistor, Push-pull
Switching principle IO-Link / PNP light switching (switching in the gap), NPN dark switching (switching on the label)
  • Switching Outputs 2:-
Switching element Transistor, Push-pull
Switching principle NPN light switching (switching in the gap), PNP dark switching (switching on the label)

Time Behavior:-

Switching frequency 2,000 Hz
Response time 0.2 ms
Readiness delay 300 ms
Max. conveyor speed during teach-in 50 m/min

Mechanical Data:-

Design Fork
Mouth width 4 mm
Mouth depth 80 mm
Dimension (W x H x L) 22 mm x 46.9 mm x 96 mm
Housing material Metal
Metal housing Diecast zinc, galvanic nickel coating
Net weight 270 g
Housing color Silver
Type of fastening Mounting thread
Through-hole mounting

Data Sheet: PDF
