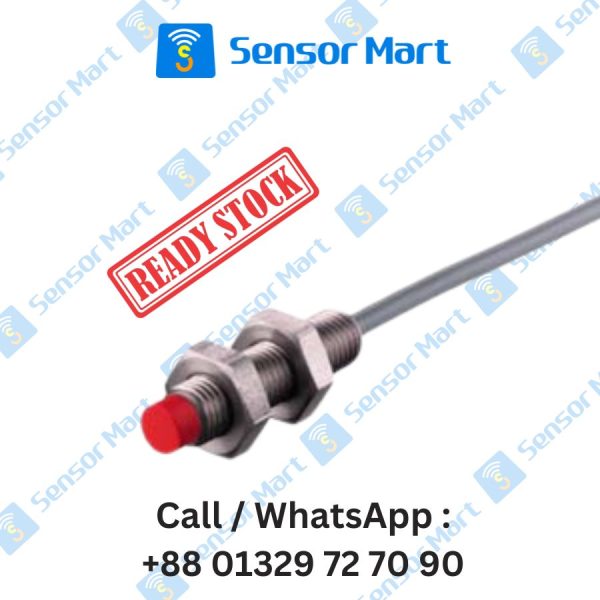

Leuze Inductive Proximity Sensor ISS 108MM/2NO-4N0 , 50136038
Basic Data:-
| Series | 108 |
| Typ. operating range limit Sn | 4 mm |
| Operating range Sa | 0 … 3.24 mm |
Electrical Data:-
| Protective circuit | Overload protection Polarity reversal protection Short circuit protected |
Performance Data:-
| Supply voltage UB | 10 … 30 V, DC |
| Residual ripple | 0 … 10 %, From UB |
| Open-circuit current | 0 … 10 mA |
| Temperature drift, max. (in % of Sr) | 10 % |
| Repeatability, max. (in % of Sr) | 1 % |
| Switching hysteresis | 15 % |
Outputs:-
| Number of digital switching outputs | 1 Piece(s) |
Switching Outputs:-
| Voltage type | DC |
| Switching current, max. | 100 mA |
| Residual current, max. | 0.01 mA |
| Voltage drop | ≤ 2 V |
Switching Outputs 1:-
| Switching element | Transistor, NPN |
| Switching principle | NO (normally open) |
Time Behavior:-
| Switching frequency | 1,000 Hz |
| Readiness delay | 25 ms |
Connection:-
| Number of connections | 1 Piece(s) |
Connection 1:-
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PVC |
| Cable color | Black |
| Number of conductors | 3 -wire |
| Wire cross section | 0.18 mm² |
Mechanical Data:-
| Design | Cylindrical |
| Thread size | M8 x 1 mm |
| Dimension (Ø x L) | 8 mm x 32 mm |
| Type of installation | Non-embedded |
| Housing material | Metal |
| Metal housing | Nickel-plated brass |
| Sensing face material | Plastic, Polyoxymethylene (POM) |
| Housing color | Red, RAL 3000 Silver |
| Type of fastening | Mounting thread |
| Standard measuring plate | 12 x 12 mm², Fe360 |
Operation & Display:-
| Type of display | LED |
| Number of LEDs | 1 Piece(s) |
Environmental Data:-
| Ambient temperature, operation | -25 … 70 °C |
| Ambient temperature, storage | -25 … 70 °C |
MODEL:-
IS 122PP/4NO-5E0,IS 122PP/2NC-5E0 ,IS 122PP/2NO-5E0 ,IS 112 MM/4NO-4E0 ,IS 112 MM/2NC-4E0 ,IS 112 MM/2NO-4E0,IS 108 MM/2NC-4N0-M12,IS 108 MM/2NO-4N0-M12 ,IS 108 MM/4NC-2E0-M12,IS 108 MM/4NO-2E0-M12 ,IS 108 MM/2NC-2E0-M12,IS 108 MM/2NO-2E0-M12,IS 118 MM/4NC-8E0,IS 118 MM/4NO-8E0,IS 118 MM/2NO-8E0 ,IS 112 MM/2NC-4E0 ,IS 112 MM/2NO-4E0 IS 108 MM/2NC-4N0-M12 ,IS 108 MM/2NO-4N0-M12 ,IS 108 MM/4NC-2E0-M12 ,IS 108 MM/4NO-2E0-M12,IS 108 MM/2NC-2E0-M12 ,IS 118 MM/4NC-8E0.
Date Sheet: Pdf
