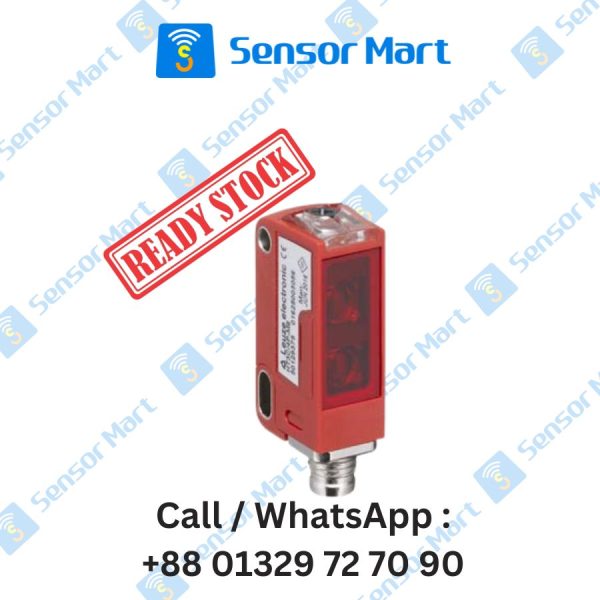

HT3C.XL/4P-M8 , 50129383 Leuze Diffuse Photoelectric Sensor

In Stock
Highlights:
  • RANGE: 20-100MM
  • OUTPUT: PNP-LIGHT SWITCHING
  • PNP-DARK SWITCHING
  • SUPPLY VOLTAGE: 10-30VDC
  • M8 CONNECTOR
  • PLASTIC HOUSING
Compare
Estimated Delivery: 1-3 Days
15 October - 17 October
Description

HT3C.XL/4P-M8 , 50129383 Leuze Diffuse Photoelectric Sensor

Diffuse Sensor With Background Suppression

Reliable detection of objects while simultaneously suppressing the background, operating ranges up to 3 m, intuitive adjustment of the operating range by means of spindle and teach button. Diffuse Sensor With Background Suppression available stock in Bangladesh.

Technical Features:-

Basic Data:-

Series 3C
Operating principle Diffuse reflection principle with background suppression
Application Detection of highly transparent bottles
Detection of objects with openings
Detection of transparent films

Special Version:-

Special version Extra long light spot (XL)

Optical Data:-

Black-white error < 10% up to 60 mm
Operating range Guaranteed operating range
Operating range, white 90% 0.005 … 0.05 m
Operating range, gray 18% 0.005 … 0.045 m
Operating range, black 6% 0.005 … 0.04 m
Operating range limit Typical operating range
Operating range limit, white 90% 0.005 … 0.1 m
Operating range limit, gray 18% 0.005 … 0.09 m
Operating range limit, black 6% 0.005 … 0.08 m
Adjustment range 20 … 100 mm
Beam path Divergent
Light source LED, Red
Wavelength 633 nm
LED group Exempt group (in acc. with EN 62471)
Light spot size [at sensor distance] 3 mm x 40 mm [50 mm]
Type of light spot geometry Rectangular

Electrical Data:-

Protective circuit Polarity reversal protection
Short circuit protected

Performance Data:-

Supply voltage UB 10 … 30 V, DC, Incl. residual ripple
Residual ripple 0 … 15 %, From UB
Open-circuit current 0 … 15 mA

Output:-

Number of digital switching outputs 2 Piece(s)
  • Switching Output 1:-
Switching element Transistor, PNP
Switching principle Light switching
  • Switching Output 2:-
Switching element Transistor, PNP
Switching principle Dark switching

Time Behavior:-

Switching frequency 1,000 Hz
Response time 0.5 ms
Readiness delay 300 ms

Connection:-

Function Signal OUT
Voltage supply
Type of connection Connector
Thread size M8
Type Male
Material Metal
No. of pins 4 -pin

Mechanical Data:-

Dimension (W x H x L) 11.4 mm x 34.2 mm x 18.3 mm
Housing material Plastic
Plastic housing PC-ABS
Lens cover material Plastic / PMMA
Net weight 10 g
Housing color Red
Type of fastening Through-hole mounting
Via optional mounting device
Compatibility of materials ECOLAB

Operations & Display:-

Type of display LED
Operational controls Multiturn potentiometer
Function of the operational control Range adjustment

Environmental Data:-

Ambient temperature, operation -40 … 60 °C
Ambient temperature, storage -40 … 70 °C

Data Sheet:-Pdf

Similar Model:-

HT25CI.HFXF/4P,SETHT25CI-450F.HF/4P410M12 BTX,,HT25CI-450F.HF/4P-410-M12,SETHT25CI-300F.HF/4P410M12 BTX,HT25CI-300F.HF/4P-410-M12,SETHT25CI-300F.HF/PX200M12 BTX,HT25CI-300F.HF/PX-200-M12,HT3CI.HF/4X-M8,ODT25B/L6.32-2500,200-S12,ODT25B/L6X.32-2500-S12,HT55C.V/LG-200-M12,ODT55C.S3/L6-M8,ODT55C.3/L6-M8,HT55CL1/LG-5000,HT55CL1/LG-5000,HT55CL1/LG-200-M12,HT55CL1/LG-M8,HT55C/LG-5000,HT55C/LG-200-M12,HT55C/LG-M8,HT55CI/LG-200-M12,,ODT53C.S3/L6-M8,ODT53C.3/L6-M8,HT5BI/4,HT5B/PX-200-M12,HT5B/4X-200-M12,HT5B/4-M8.3,HT5B/PX-M8 ,HT5B/4X-M8,HT5B/2X-M8,HT5B/P,HT5B/4,HT5B/2.
