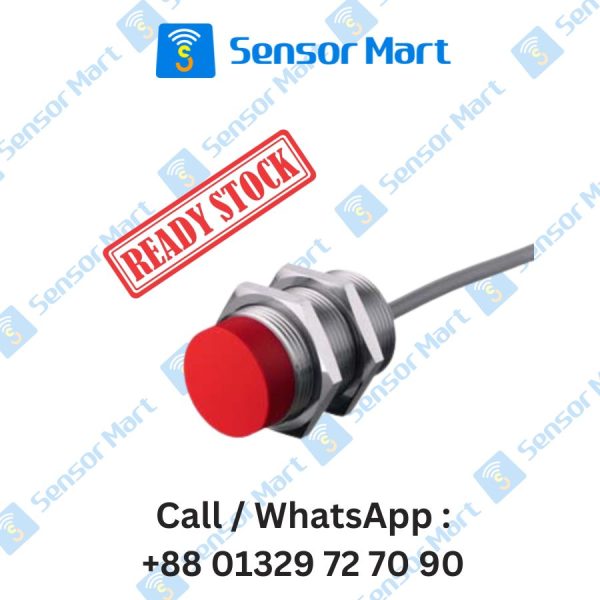

IS 230MM/1NO.3-15N, 50128154 Leuze Inductive Proximity Sensor
Specifications:-
Basic Data:-
| Series | 230 |
| Typ. operating range limit Sn | 15 mm |
| Operating range Sa | 0 … 12.1 mm |
Measurement Data:-
| Repeatability | 0.75 mm |
Electrical Data:-
| Protective circuit | Inductive protection Polarity reversal protection Short circuit protected |
Performance Data:-
| Supply voltage UB | 10 … 320 V, AC/DC |
| Residual ripple | 0 … 20 %, From UB |
| Open-circuit current | 0 … 1 mA |
| Temperature drift, max. (in % of Sr) | 10 %, Over the entire operating temperature range |
| Repeatability, max. (in % of Sr) | 5 %, For UB = 20 … 30 V DC, ambient temperature Ta = 23 °C ± 5 °C |
| Switching hysteresis | 20 % |
Outputs:-
| Number of digital switching outputs | 1 Piece(s) |
Switching Outputs:-
| Voltage type | AC/DC |
| Switching current, max. | 200 mA |
| Voltage drop | ≤ 2 V |
Switching Outputs 1:-
| Switching element | Relay, NO |
| Switching principle | NO (normally open) |
Time Behavior:-
| Switching frequency | 500 Hz |
| Oscillator frequency | 50,000 Hz |
| Readiness delay | 70 ms |
Connection:-
| Number of connections | 1 Piece(s) |
Connection 1:-
| Function | Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PVC |
| Cable color | Black |
| Number of conductors | 2 -wire |
| Wire cross section | 0.34 mm² |
Mechanical Data:-
| Design | Cylindrical |
| Thread size | M30 x 1.5 mm |
| Dimension (Ø x L) | 30 mm x 50 mm |
| Type of installation | Non-embedded |
| Housing material | Metal |
| Metal housing | Chromed brass |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Net weight | 180 g |
| Housing color | Red, RAL 3000 Silver |
| Type of fastening | Mounting thread Via optional mounting device |
| Standard measuring plate | 45 x 45 mm², Fe360 |
Operation & Display:-
| Type of display | LED |
| Number of LEDs | 1 Piece(s) |
Environmental Data:-
| Ambient temperature, operation | -25 … 70 °C |
Data Sheet: Pdf
Model:-
IS 230MM/2NC-15N ; Part no.: 50129371
IS 230MM/4NC-15N ; Part no.: 50129370
IS 230MM/4NC-10E ; Part no.: 50129369
IS 230MM/4NC-15N-S12 ; Part no.: 50128813
IS 230MM/4NC-10E-S12 ; Part no.: 50111871
IS 230MM/2NO-40N ; Part no.: 50109728
IS 230MM/4NO-40N-S12 ; Part no.: 50109727
IS 230MM/4NO-40N ; Part no.: 50109726
IS 230MM/2NO-22E ; Part no.: 50109723
IS 230MM/4NC-22E-S12 ; Part no.: 50109722
IS 230MM/4NO-22E-S12 ; Part no.: 50109721
IS 230MM/4NO-22E ; Part no.: 50109720
IS 230MM/2NO-15N-S12 ; Part no.: 50109719
IS 230MM/2NO-15N ; Part no.: 50109718
IS 230MM/4NO-15N-S12 ; Part no.: 50109717
IS 230MM/4NO-15N ; Part no.: 50109716
IS 230MM/2NO-10E ; Part no.: 50109714
IS 230MM/4NO-10E-S12 ; Part no.: 50109713
IS 230MM/4NO-10E ; Part no.: 50109712
IS 230FM/2NO.5-10E ; Part no.: 50128166
IS 230FM/2NO.5-10E-S12 ; Part no.: 50128165
IS 230FM/4NO.5-10E ; Part no.: 50128164
IS 230FM/4NO.5-10E-S12 ; Part no.: 50128163
IS 230FM/4NO.5F-40N-S12 ; Part no.: 50111436
IS 230FM/4NO.5F-20E-S12 ; Part no.: 50111435
IS 230MM/1NO.3-15N ; Part no.: 50128154
IS 230MM/1NC.3-15N ; Part no.: 50128153
