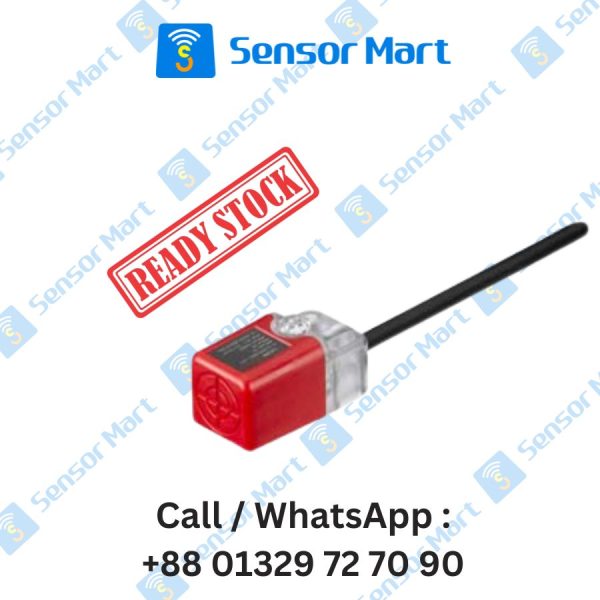

IS 122PP/4NC-5E0 , 50130023 Leuze Inductive Proximity Sensor
Basic Data:-
| Series | 122 |
| Typ. operating range limit Sn | 5 mm |
Electrical Data:-
| Protective circuit | Overload protection Polarity reversal protection Short circuit protected |
Performance Data:-
| Supply voltage UB | 10 … 30 V, DC |
| Open-circuit current | 0 … 10 mA |
| Temperature drift, max. (in % of Sr) | 10 % |
| Repeatability, max. (in % of Sr) | 1 % |
| Switching hysteresis | 15 % |
Outputs:-
| Number of digital switching outputs | 1 Piece(s) |
Switching Outputs:-
| Voltage type | DC |
| Switching current, max. | 200 mA |
| Residual current, max. | 0.01 mA |
| Voltage drop | ≤ 2 V |
Switching Outputs 1:-
| Switching element | Transistor, PNP |
| Switching principle | NC (normally closed) |
Time Behavior:-
| Switching frequency | 500 Hz |
Connection:-
| Number of connections | 1 Piece(s) |
Connection 1:-
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PVC |
| Cable color | Black |
| Number of conductors | 3 -wire |
| Wire cross section | 0.25 mm² |
Mechanical Data:-
| esign | Cubic |
| Dimension (W x H x L) | 18 mm x 18 mm x 34.3 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Plastic housing | ABS |
| Sensing face material | Plastic, ABS |
| Housing color | Red, RAL 3000 Transparent |
| Type of fastening | Through-hole mounting |
| Standard measuring plate | 15 x 15 mm², Fe360 |
Operation & Display:-
| Type of display | LED |
| Number of LEDs | 1 Piece(s) |
Environmental Data:-
| Ambient temperature, operation | -25 … 70 °C |
| Ambient temperature, storage | -25 … 70 °C |
MODEL:-
IS 122PP/4NC-5E0 ; Part no.: 50130023
IS 122PP/4NO-5E0 ; Part no.: 50130022
IS 122PP/2NC-5E0 ; Part no.: 50130021
IS 122PP/2NO-5E0 ; Part no.: 50130020
IS 144 PP/4NC-40N-TB.4 ; Part no.: 50130019
IS 144 PP/4NO-40N-TB.4 ; Part no.: 50130018
IS 144 PP/2NC-40N-TB.4 ; Part no.: 50130017
IS 144 PP/2NO-40N-TB.4 ; Part no.: 50130016
IS 144 PP/4NC-20E-TB.4 ; Part no.: 50130015
IS 144 PP/4NO-20E-TB.4 ; Part no.: 50130014
IS 144 PP/2NC-20E-TB.4 ; Part no.: 50130013
IS 144 PP/2NO-20E-TB.4 ; Part no.: 50130012
ISS 144 PP/4NC-30N-M12 ; Part no.: 50130011
ISS 144 PP/4NO-30N-M12 ; Part no.: 50130010
ISS 144 PP/2NC-30N-M12 ; Part no.: 50130009
ISS 144 PP/2NO-30N-M12 ; Part no.: 50130008
ISS 144 PP/4NC-20E-M12 ; Part no.: 50130007
ISS 144 PP/4NO-20E-M12 ; Part no.: 50130006
ISS 144 PP/2NC-20E-M12 ; Part no.: 50130005
ISS 144 PP/2NO-20E-M12 ; Part no.: 50130004
Data Sheet: Pdf
