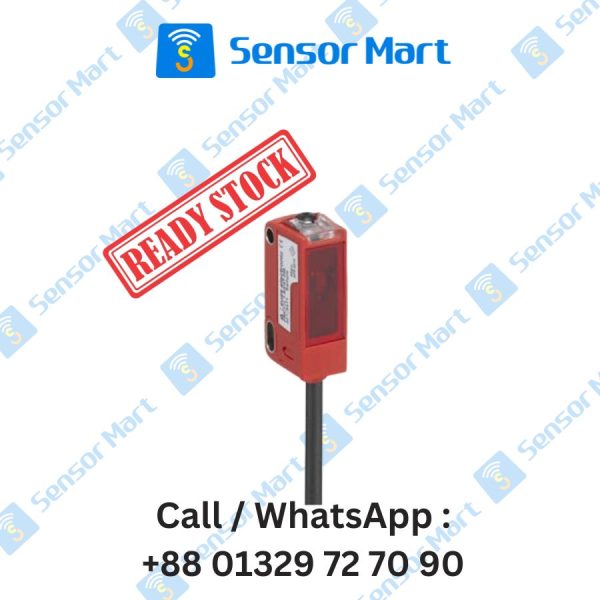

PRK3C.A3/4T, 50129404 Leuze Photoelectric Sensor
Polarized Retro-Reflective Photoelectric Sensor
Basic Data:-
| Series | 3C |
| Operating principle | Reflection principle |
Special Version:-
| Special version | Autocollimation Teach input |
Optical Data:-
| Operating range | 0 … 4 m, With reflector TK(S) 100×100 |
| Operating range | Guaranteed operating range |
| Operating range limit | Typical operating range |
| Operating range limit | 0 … 5 m, With reflector TK(S) 100×100 |
| Light source | LED, Red |
| Wavelength | 635 nm |
| LED group | Exempt group (in acc. with EN 62471) |
Electrical Data:-
| Protective circuit | Polarity reversal protection Short circuit protected |
Performance Data:-
| Supply voltage UB | 10 … 30 V, DC, Incl. residual ripple |
| Residual ripple | 0 … 15 %, From UB |
| Open-circuit current | 0 … 15 mA |
Inputs:-
| Number of teach inputs | 1 Piece(s) |
Teach Input 1:-
| Function | Keyboard lockout Light/dark switching Sensitivity adjustment |
Outputs:-
| Number of digital switching outputs | 1 Piece(s) |
Switching Output 1:-
| Switching element | Transistor, PNP |
| Switching principle | Light switching |
Time Behavior:-
| Switching frequency | 1,500 Hz |
| Response time | 0.33 ms |
| Readiness delay | 300 ms |
Connection:-
Connection 1:-
| Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | 4 -wire |
| Wire cross section | 0.2 mm² |
Mechanical Data:-
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material | Plastic |
| Plastic housing | PC-ABS |
| Lens cover material | Plastic / PMMA |
| Net weight | 50 g |
| Housing color | Red |
| Type of fastening | Through-hole mounting Via optional mounting device |
| Compatibility of materials | ECOLAB |
Operation & Display:-
| Type of display | LED |
| Operational controls | Teach button |
| Function of the operational control | Sensitivity adjustment |
Environmental Data:-
| Ambient temperature, operation | -40 … 60 °C |
| Ambient temperature, storage | -40 … 70 °C |
Data Sheet: Pdf
