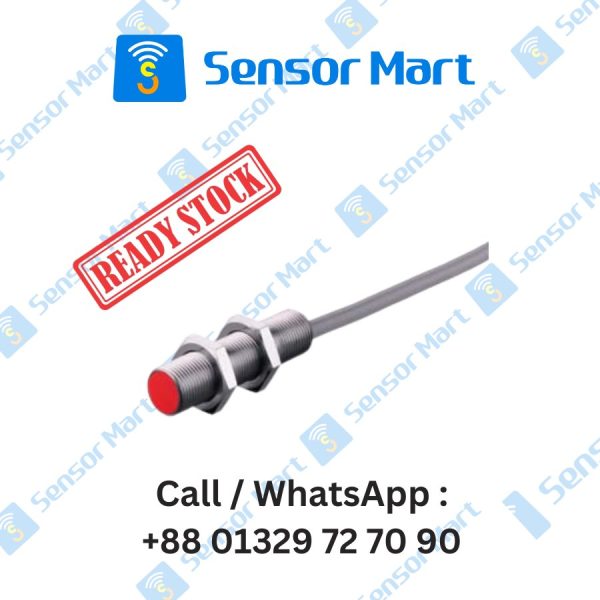

IS 112MM/4NO-6E0, 50129870 Leuze Inductive Proximity Sensor

In Stock
Highlights:
  • DIA: 12MM
  • SN: 6MM
  • PNP-NO
  • SUPPLY VOLTAGE: 10-30VDC
  • CABLE TYPE
  • 3 WIRE
  • METAL HOUSING
  • EMBEDDED



Compare
Estimated Delivery: 1-3 Days
15 October - 17 October
Description

IS 112MM/4NO-6E0, 50129870 Leuze Inductive Proximity Sensor

Inductive Proximity Sensor

Specifications:-

Basic Data:-

Series 112
Typ. operating range limit Sn 6 mm
Operating range Sa 0 … 4.8 mm

Electrical Data:-

Protective circuit Overload protection
Polarity reversal protection
Short circuit protected

Performance Data:-

Supply voltage UB 10 … 30 V, DC
Residual ripple 10 %, From UB
Open-circuit current 0 … 10 mA
Temperature drift, max. (in % of Sr) 10 %
Repeatability, max. (in % of Sr) 1 %
Switching hysteresis 15 %

Outputs:-

Number of digital switching outputs 1 Piece(s)

Switching Outputs:-

Voltage type DC
Switching current, max. 200 mA
Residual current, max. 0.01 mA
Voltage drop ≤ 2 V

Switching Outputs 1:-

Switching element Transistor, PNP
Switching principle NO (normally open)

Time Behavior:-

Switching frequency 800 Hz

Connection:-

Number of connections 1 Piece(s)

Connection 1:-

Function Signal OUT
Voltage supply
Type of connection Cable
Cable length 2,000 mm
Sheathing material PVC
Cable color Black
Number of conductors 3 -wire
Wire cross section 0.35 mm²

Mechanical Data:-

Design Cylindrical
Thread size M12 x 1 mm
Dimension (Ø x L) 12 mm x 50 mm
Type of installation Embedded
Housing material Metal
Metal housing Nickel-plated brass
Sensing face material Plastic, Polybutylene (PBT)
Housing color Red, RAL 3000
Silver
Type of fastening Mounting thread
Standard measuring plate 18 x 18 mm², Fe360

Operation & Display:-

Type of display LED
Number of LEDs 1 Piece(s)

Environmental Data:-

Ambient temperature, operation -25 … 70 °C
Ambient temperature, storage -25 … 70 °C

Data Sheet: Pdf

Model:-

IS 112MM/2NO-4E0-PUR ; Part no.: 50134444
IS 112MM/4NO-4E0-PUR ; Part no.: 50134443
IS 112 MM/4NC-8N0-M12; Part no.: 50129887
IS 112 MM/4NO-8N0-M12 ; Part no.: 50129886
IS 112 MM/2NC-8N0-M12 ; Part no.: 50129885
IS 112 MM/2NO-8N0-M12 ; Part no.: 50129884
IS 112 MM/4NC-6E0-M12 ; Part no.: 50129883
IS 112 MM/4NO-6E0-M12 ; Part no.: 50129882
IS 112 MM/2NC-6E0-M12 ; Part no.: 50129881
IS 112 MM/2NO-6E0-M12 ; Part no.: 50129880
IS 112 MM/4NC-4E0-M12 ; Part no.: 50129879
IS 112 MM/4NO-4E0-M12 ; Part no.: 50129878
IS 112 MM/2NC-4E0-M12 ; Part no.: 50129877
IS 112 MM/2NO-4E0-M12 ; Part no.: 50129876
IS 112 MM/4NC-8N0 ; Part no.: 50129875
IS 112 MM/4NO-8N0 ; Part no.: 50129874
IS 112 MM/2NC-8N0 ; Part no.: 50129873
IS 112 MM/2NO-8N0 ; Part no.: 50129872
IS 112 MM/4NC-6E0 ; Part no.: 50129871
IS 112 MM/4NO-6E0 ; Part no.: 50129870
IS 112 MM/2NC-6E0 ; Part no.: 50129869
IS 112 MM/2NO-6E0 ; Part no.: 50129868
IS 112 MM/4NC-4E0 ; Part no.: 50129867
IS 112 MM/4NO-4E0 ; Part no.: 50129866
IS 112 MM/2NC-4E0 ; Part no.: 50129865
IS 112 MM/2NO-4E0 ; Part no.: 50129864
