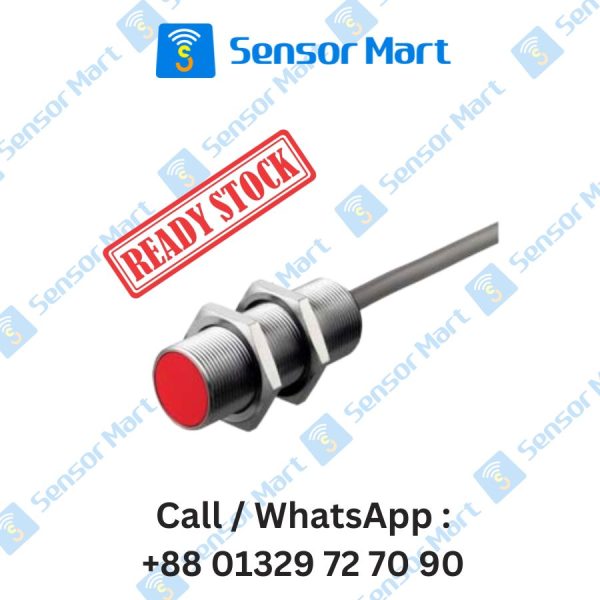

IS 118MM/4NC-8E0, 50129857 Leuze Inductive Proximity Sensor
Specifications:-
Basic Data:-
| Series | 118 |
| Typ. operating range limit Sn | 8 mm |
| Operating range Sa | 0 … 6.5 mm |
Electrical Data:-
| Protective circuit | Overload protection Polarity reversal protection Short circuit protected |
Performance Data:-
| Supply voltage UB | 10 … 30 V, DC |
| Residual ripple | 10 %, From UB |
| Open-circuit current | 0 … 10 mA |
| Temperature drift, max. (in % of Sr) | 10 % |
| Repeatability, max. (in % of Sr) | 1 % |
| Switching hysteresis | 15 % |
Outputs:-
| Number of digital switching outputs | 1 Piece(s) |
Switching Outputs:-
| Voltage type | DC |
| Switching current, max. | 200 mA |
| Residual current, max. | 0.01 mA |
| Voltage drop | ≤ 2 V |
Switching Outputs 1:-
| Switching element | Transistor, PNP |
| Switching principle | NC (normally closed) |
Time Behavior:-
| Switching frequency | 3,000 Hz |
Connection:-
| Number of connections | 1 Piece(s) |
Connection 1:-
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PVC |
| Cable color | Black |
| Number of conductors | 3 -wire |
| Wire cross section | 0.35 mm² |
Mechanical Data:-
| Design | Cylindrical |
| Thread size | M18 x 1 mm |
| Dimension (Ø x L) | 18 mm x 55 mm |
| Type of installation | Embedded |
| Housing material | Metal |
| Metal housing | Nickel-plated brass |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000 Silver |
| Type of fastening | Mounting thread |
| Standard measuring plate | 24 x 24 mm², Fe360 |
Operation & Display:-
| Type of display | LED |
| Number of LEDs | 1 Piece(s) |
Environmental Data:-
| Ambient temperature, operation | -25 … 70 °C |
| Ambient temperature, storage | -25 … 70 °C |
Model:-
ISS 118MM/4NC-8E0-M12 ; Part no.: 50144726
ISS 118MM/4NO-16N-M12 ; Part no.: 50136057
ISS 118MM/2NO-16N-M12 ; Part no.: 50136056
ISS 118MM/4NO-16N ; Part no.: 50136055
ISS 118MM/2NO-16N ; Part no.: 50136054
ISS 118MM/4NO-8E0-M12 ; Part no.: 50136013
ISS 118MM/2NO-8E0-M12 ; Part no.: 50136012
ISS 118MM/4NO-8E0 ; Part no.: 50136011
ISS 118MM/2NO-8E0 ; Part no.: 50136010
IS 118MM/4NC-16N-M12 ; Part no.: 50129987
IS 118 MM/4NO-16N-M12 ; Part no.: 50129985
IS 118MM/2NC-16N-M12 ; Part no.: 50129984
IS 118 MM/2NO-16N-M12 ; Part no.: 50129983
IS 118 MM/4NC-8E0-M12 ; Part no.: 50129982
IS 118 MM/4NO-8E0-M12 ; Part no.: 50129981
IS 118 MM/2NC-8E0-M12 ; Part no.: 50129980
IS 118 MM/2NO-8E0-M12 ; Part no.: 50129979
IS 118MM/4NC-16N ; Part no.: 50129978
IS 118MM/4NO-16N ; Part no.: 50129977
IS 118MM/2NC-16N ; Part no.: 50129961
IS 118MM/2NO-16N ; Part no.: 50129960
IS 118 MM/4NC-8E0 ; Part no.: 50129857
IS 118 MM/4NO-8E0 ; Part no.: 50129856
IS 118 MM/2NC-8E0 ; Part no.: 50129854
IS 118 MM/2NO-8E0 ; Part no.: 50129843
ISS 218MM/2NO-8E0 ; Part no.: 50145949
ISS 218MM/4NO-8E0 ; Part no.: 50145948
ISS 218MM/44-14N-S12 ; Part no.: 50141485
ISS 218MM/44-14N ; Part no.: 50141484
ISS 218MM/44-8E0-S12 ; Part no.: 50141483
ISS 218MM/44-8E0 ; Part no.: 50141482
ISS 218MM/44-8N0-S12 ; Part no.: 50141481
ISS 218MM/44-8N0 ; Part no.: 50141480
ISS 218MM/44-5E0-S12 ; Part no.: 50141479
ISS 218MM/44-5E0 ; Part no.: 50141478
IS 218MM/4NC-12N-S12 ; Part no.: 50135397
ISS 218MM/4NC-8E0-200-S12 ; Part no.: 50135195
ISS 218MM/4NO-8E0-200-S12 ; Part no.: 50135194
IS 218MM/4NO-12N-S12 ; Part no.: 50134095
ISS 218MM/4NC-5E0-S12 ; Part no.: 50129368
IS 218MM/2NC-8E0 ; Part no.: 50129367
IS 218 MM/4NC-12E-S12 ; Part no.: 50129366
IS 218MM/4NC-20N ; Part no.: 50129365
IS 218MM/4NC-8E0 ; Part no.: 50129364
IS 218MM/2NC-8N0-S12 ; Part no.: 50129363
IS 218MM/2NC-8N0 ; Part no.: 50129362
IS 218MM/4NC-8N0-S12 ; Part no.: 50129361
IS 218MM/4NC-8N0 ; Part no.: 50129360
IS 218MM/4NC-5E0-S12 ; Part no.: 50127466
ISS 218MM/4NC-12E-S12 ; Part no.: 50120273
IS 218MM/4NC-5E0 ; Part no.: 50118521
IS 218MM/4NO-12E-S12 ; Part no.: 50114427
ISS 218MM/4NO-5E0 ; Part no.: 50112915
ISS 218MM/4NO-5E0-S12 ; Part no.: 50112293
IS 218MM/2NO-8E0 ; Part no.: 50112104
IS 218MM/2NO-12E ; Part no.: 50111954
IS 218MM/2NO-20N ; Part no.: 50111953
ISS 218MM/2NC-8E0-S12 ; Part no.: 50111745
ISS 218MM/4NC-8E0-S12 ; Part no.: 50111744
ISS 218MM/4NO-8E0-S12 ; Part no.: 50111743
ISS 218MM/4NC-20N-S12 ; Part no.: 50109711
ISS 218MM/4NO-20N-S12 ; Part no.: 50109710
IS 218MM/4NO-20N ; Part no.: 50109709
ISS 218MM/2NO-12E-S12 ; Part no.: 50109708
ISS 218MM/4NO-12E-S12 ; Part no.: 50109707
IS 218MM/4NO-12E ; Part no.: 50109706
IS 218MM/2NC-8E0-S12 ; Part no.: 50109705
IS 218MM/2NO-8E0-S12 ; Part no.: 50109704
ISS 218MM/2NO-8E0-S12 ; Part no.: 50109703
IS 218MM/4NC-8E0-S12 ; Part no.: 50109702
IS 218MM/4NO-8E0-S12 ; Part no.: 50109701
IS 218MM/4NO-8E0 ; Part no.: 50109700
IS 218MM/2NO-8N0-S12 ; Part no.: 50109699
IS 218MM/2NO-8N0 ; Part no.: 50109698
IS 218MM/4NO-8N0-S12 ; Part no.: 50109697
IS 218MM/4NO-8N0 ; Part no.: 50109696
IS 218MM/2NO-5E0 ; Part no.: 50109694
IS 218MM/4NO-5E0-S12 ; Part no.: 50109693
IS 218MM/4NO-5E0 ; Part no.: 50109692
IS 218FM/4NC.5-5E0 ; Part no.: 50138121
IS 218FM/2NO.5-5E0 ; Part no.: 50128172
IS 218FM/2NO.5-5E0-S12 ; Part no.: 50128171
IS 218FM/4NO.5-5E0 ; Part no.: 50128170
IS 218FM/4NO.5-5E0-S12 ; Part no.: 50128169
IS 218FM/4NO.5F-20N-S12 ; Part no.: 50109734
IS 218FM/4NO.5F-10E-S12 ; Part no.: 50109732
IS 218MM/1NO.3-5E0 ; Part no.: 50128152
IS 218MM/1NC.3-5E0 ; Part no.: 50128151
