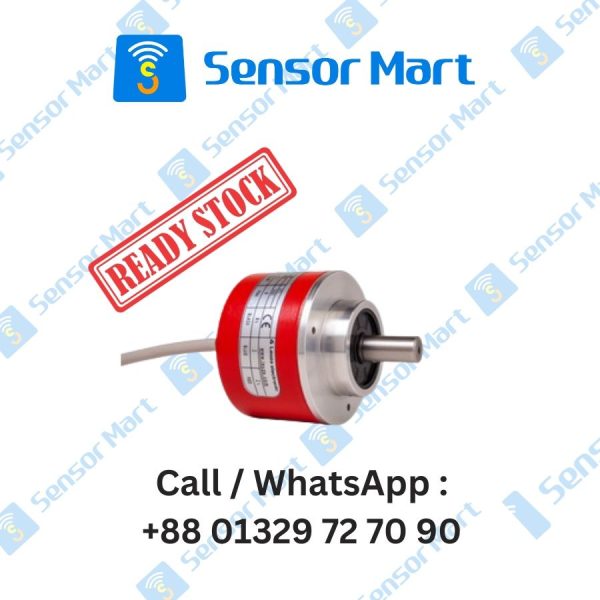

EI 1058-S10x20C-1024H-020R, 50140917 Leuze Rotary Encoder
Specifications:-
Basic Data:-
| Series | EI 1xxx |
| Type | Incremental rotary encoder |
Mesurement Data :-
| Max. operating speed | 6,000 r/min |
| Resolution | 5,000 p/r |
Electrical Data:-
| Protective circuit | Polarity reversal protection Short circuit protected |
Performance Data:-
| Supply voltage UB | 5 … 28 V, DC |
| Open-circuit current | 0 … 150 mA |
Time Behavior:-
| Switching frequency | 300,000 Hz |
Interface:-
| Type | HTL |
Connection:-
Connection 1:-
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 5,000 mm |
| Connector | Axial |
| Sheathing material | PVC |
| Cable color | Gray |
| Number of conductors | 8 -wire |
| Wire cross section | 0.14 mm² |
Mechanical Data:-
| Housing material | Metal |
| Metal housing | Aluminum |
| Flange type | Clamping flange |
Shaft:-
| Design | Shaft |
| Dimension (Ø x L) | 10 mm |
| Dimension (Ø x L) | 20 mm |
| Start-up torque | 0.5 N·m |
| Shaft load – axial | 60 N |
| Shaft load – radial | 120 N |
Environmental Data:-
| Ambient temperature, operation | -40 … 70 °C |
| Ambient temperature, storage | -40 … 70 °C |
