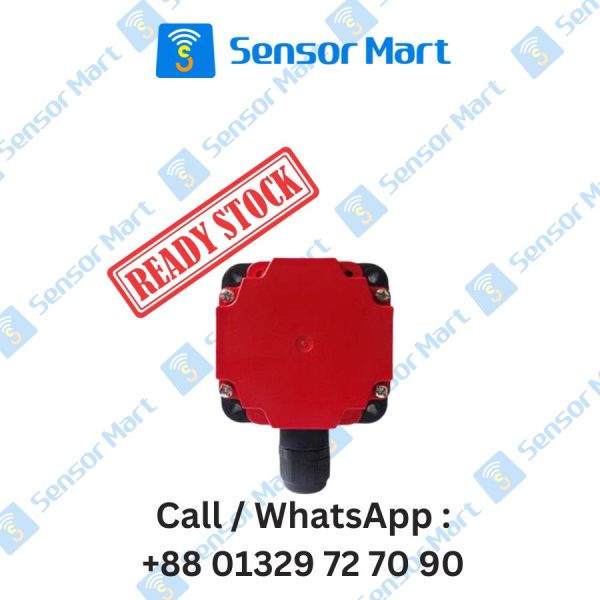

IS 180PP/22-50N-TB.4, 50133405 Leuze Inductive Proximity Sensor
Specifications:-
Basic Data:-
| Series | 180 |
| Typ. operating range limit Sn | 50 mm |
| Operating range Sa | 0 … 40.5 mm |
Electrical Data:-
| Protective circuit | Overload protection Polarity reversal protection Short circuit protected |
Performance Data:-
| Supply voltage UB | 10 … 30 V, DC |
| Residual ripple | 10 %, From UB |
| Open-circuit current | 0 … 10 mA |
| Temperature drift, max. (in % of Sr) | 10 % |
| Repeatability, max. (in % of Sr) | 1 % |
| Switching hysteresis | 15 % |
Outputs:-
| Number of digital switching outputs | 2 Piece(s) |
Switching Outputs:-
| Voltage type | DC |
| Switching current, max. | 200 mA |
| Residual current, max. | 0.01 mA |
| Voltage drop | ≤ 2 V |
Switching Outputs 1:-
| Switching element | Transistor, NPN |
| Switching principle | NO (normally open) |
Time Behavior:-
| Switching frequency | 100 Hz |
Connection:-
| Number of connections | 1 Piece(s) |
Connection 1:-
| Function | Signal OUT Voltage supply |
| Type of connection | Terminal |
| No. of pins | 4 -pin |
Mechanical Data:-
| Design | Cubic |
| Dimension (W x H x L) | 40 mm x 80 mm x 80 mm |
| Type of installation | Non-embedded |
| Housing material | Plastic |
| Plastic housing | Polybutylene (PBT) |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Black Red, RAL 3000 |
| Type of fastening | Through-hole mounting |
| Standard measuring plate | 150 x 150 mm², Fe360 |
Operation & Display:-
| Type of display | LED |
| Number of LEDs | 2 Piece(s) |
Environmental Data:-
| Ambient temperature, operation | -25 … 70 °C |
| Ambient temperature, storage | -25 … 70 °C |
Data Sheet: Pdf
Model:-
IS 180PP/22-50N-TB.4 ; Part no.: 50133405
IS 180PP/44-50N-TB.4 ; Part no.: 50132770
