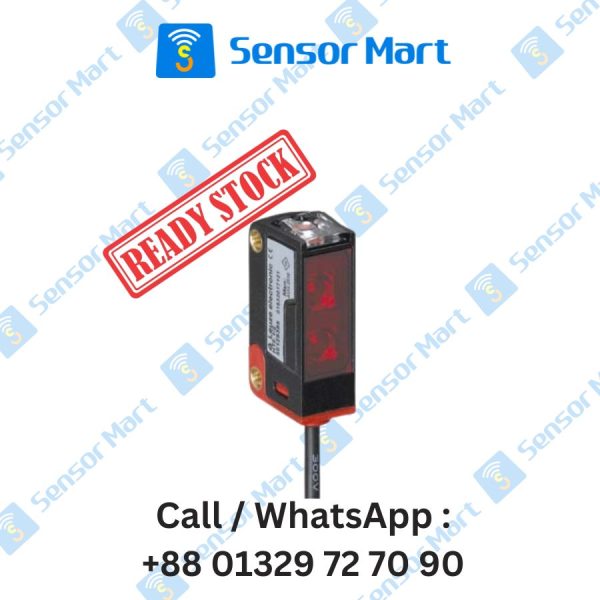

HT5.1/4 , 50129400 Leuze Diffuse Sensor With Background Suppression
Diffuse Photoelectric Sensor
Technical Data:-
Basic Data:-
| Series | 5 |
| Operating principle | Diffuse reflection principle with background suppression |
Optical Data:-
| Black-white error | < 15% up to 200 mm |
| Operating range | Guaranteed operating range |
| Operating range, white 90% | 0.002 … 0.4 m |
| Operating range, gray 18% | 0.005 … 0.3 m |
| Operating range, black 6% | 0.01 … 0.2 m |
| Operating range limit | Typical operating range |
| Operating range limit | 0.002 … 0.4 m |
| Adjustment range | 20 … 400 mm |
| Beam path | Focused |
| Light source | LED, Red |
| Wavelength | 645 nm |
| LED group | Exempt group (in acc. with EN 62471) |
| Type of light spot geometry | Round |
| Focus | Fixed |
| Focal distance | 200 mm |
Electrical Data:-
| Protective circuit | Polarity reversal protection Short circuit protected |
Performance Data:-
| Supply voltage UB | 10 … 30 V, DC, Incl. residual ripple |
| Residual ripple | 0 … 15 %, From UB |
| Open-circuit current | 0 … 15 mA |
Outputs:-
| Number of digital switching outputs | 1 Piece(s) |
Switching Outputs 1:-
| Switching element | Transistor, PNP |
| Switching principle | Light switching (dark switching by reversing polarity of UB) |
Time Behavior:-
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Readiness delay | 300 ms |
Connection:-
Connection 1:-
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PVC |
| Cable color | Black |
| Number of conductors | 3 -wire |
| Wire cross section | 0.14 mm² |
Mechanical Data:-
| Dimension (W x H x L) | 11 mm x 32.4 mm x 20 mm |
| Housing material | Plastic |
| Plastic housing | PC-ABS |
| Lens cover material | Plastic / PMMA |
| Net weight | 44 g |
| Housing color | Black Red |
| Type of fastening | Two M3 threaded sleeves Via optional mounting device |
| Compatibility of materials | ECOLAB |
Operation & Display:-
| Type of display | LED |
| Operational controls | Multiturn potentiometer |
| Function of the operational control | Range adjustment |
Environmental Data:-
| Ambient temperature, operation | -40 … 60 °C |
| Ambient temperature, storage | -40 … 70 °C |
MODEL:-
HT25CI.HFXF/4P Part no.: 50150809,SETHT25CI-450F.HF/4P410M12 Part no.: 50150730, HT25CI-450F.HF/4P-410-M12 Part no.: 50150729,
SETHT25CI-300F.HF/4P410M12 Part no.: 50150728, HT25CI-300F.HF/4P-410-M12 Part no.: 50150727, SETHT25CI-300F.HF/PX200M12 Part no.: 50150373,HT25CI-300F.HF/PX-200-M12 Part no.: 50150372 HT3CI.HF/4X-M8 Part no.: 50149631, HT3C.BVXL/4P-M8 Part no.: 50149612, ODT25B/L6.32-2500,200-S12 Part no.: 50149096,ODT25B/L6X.32-2500-S12 Part no.: 50148589, HT55C.V/LG-200-M12 Part no.: 50148214, ODT55C.S3/L6-M8 Part no.: 50148213, ODT55C.3/L6-M8 Part no.: 50148212, HT55CL1/LG-5000 Part no.: 50148211, HT55CL1/LG-200-M12 Part no.: 50148210, HT55CL1/LG-M8 Part no.: 50148209, HT55C.XL/LG-200-M12 Part no.: 50148208, HT55C.XL/LG-M8 Part no.: 50148207,HT55C.S/LG-200-M12 Part no.: 50148206, HT55C.S/LG-M8 Part no.: 50148205.
DATA SHEET:-PDF
