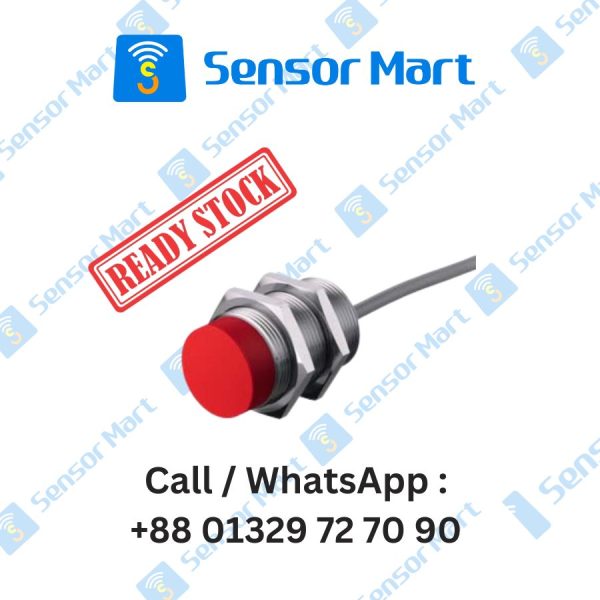

IS 130MM/2NC-25N, 50134109 Leuze Inductive Proximity Sensor

In Stock
Highlights:
  • DIA: 30MM
  • SN: 25MM
  • NPN-NC
  • SUPPLY VOLTAGE: 10-30VDC
  • CABLE TYPE
  • 3 WIRE
  • METAL HOUSING
  • NON EMBEDDED



Compare
Estimated Delivery: 1-3 Days
15 October - 17 October
Description

IS 130MM/2NC-25N, 50134109 Leuze Inductive Proximity Sensor

Inductive Proximity Sensor

Specifications:-

Basic Data:-

Series 130
Typ. operating range limit Sn 25 mm
Operating range Sa 0 … 20.2 mm

Electrical Data:-

Protective circuit Overload protection
Polarity reversal protection
Short circuit protected

Performance Data:-

Supply voltage UB 10 … 30 V, DC
Residual ripple 10 %, From UB
Open-circuit current 0 … 10 mA
Temperature drift, max. (in % of Sr) 10 %
Repeatability, max. (in % of Sr) 1 %
Switching hysteresis 15 %

Outputs:-

Number of digital switching outputs 1 Piece(s)

Switching Outputs:-

Voltage type DC
Switching current, max. 200 mA
Residual current, max. 0.01 mA
Voltage drop ≤ 2 V

Switching Outputs 1:-

Switching element Transistor, NPN
Switching principle NC (normally closed)

Time Behavior:-

Switching frequency 300 Hz

Connection:-

Number of connections 1 Piece(s)

Connection 1:-

Function Signal OUT
Voltage supply
Type of connection Cable
Cable length 2,000 mm
Sheathing material PVC
Cable color Black
Number of conductors 3 -wire
Wire cross section 0.35 mm²

Mechanical Data:-

Design Cylindrical
Thread size M30 x 1.5 mm
Dimension (Ø x L) 30 mm x 60 mm
Type of installation Non-embedded
Housing material Metal
Metal housing Nickel-plated brass
Sensing face material Plastic, Polybutylene (PBT)
Housing color Red, RAL 3000
Silver
Type of fastening Mounting thread
Standard measuring plate 75 x 75 mm², Fe360

Operation & Display:-

Type of display LED
Number of LEDs 1 Piece(s)

Environmental Data:-

Ambient temperature, operation -25 … 70 °C
Ambient temperature, storage -25 … 70 °C

Data Sheet: Pdf

Available Stock In Bangladesh

Model:-

IS 130MM/4NO-25N-M12 ; Part no.: 50138094
IS 130MM/4NC-25N-M12 ; Part no.: 50138093
IS 130MM/2NO-25N-M12 ; Part no.: 50138092
IS 130MM/2NC-25N-M12 ; Part no.: 50138091
IS 130MM/4NC-16E-M12 ; Part no.: 50136067
IS 130MM/4NO-16E-M12 ; Part no.: 50136066
IS 130MM/2NC-16E-M12 ; Part no.: 50136065
IS 130MM/2NO-16E-M12 ; Part no.: 50136064
IS 130MM/4NC-16E ; Part no.: 50136061
IS 130MM/4NO-16E ; Part no.: 50136060
IS 130MM/2NC-16E ; Part no.: 50136059
IS 130MM/2NO-16E ; Part no.: 50136058
