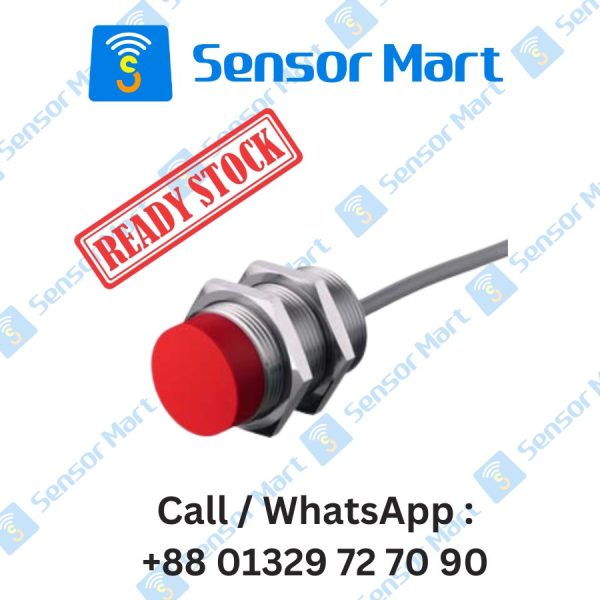

IS 130MM/2NO-25N, 50134108 Leuze Inductive Proximity Sensor
Specifications:-
Basic Data:-
| Series | 130 |
| Typ. operating range limit Sn | 25 mm |
| Operating range Sa | 0 … 20.2 mm |
Electrical Data:-
| Protective circuit | Overload protection Polarity reversal protection Short circuit protected |
Performance Data:-
| Supply voltage UB | 10 … 30 V, DC |
| Residual ripple | 10 %, From UB |
| Open-circuit current | 0 … 10 mA |
| Temperature drift, max. (in % of Sr) | 10 % |
| Repeatability, max. (in % of Sr) | 1 % |
| Switching hysteresis | 15 % |
Outputs:-
| Number of digital switching outputs | 1 Piece(s) |
Switching Outputs:-
| Voltage type | DC |
| Switching current, max. | 200 mA |
| Residual current, max. | 0.01 mA |
| Voltage drop | ≤ 2 V |
Switching Outputs 1:-
| Switching element | Transistor, NPN |
| Switching principle | NO (normally open) |
Time Behavior:-
| Switching frequency | 300 Hz |
Connection:-
| Number of connections | 1 Piece(s) |
Connection 1:-
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PVC |
| Cable color | Black |
| Number of conductors | 3 -wire |
| Wire cross section | 0.35 mm² |
Mechanical Data:-
| Design | Cylindrical |
| Thread size | M30 x 1.5 mm |
| Dimension (Ø x L) | 30 mm x 60 mm |
| Type of installation | Non-embedded |
| Housing material | Metal |
| Metal housing | Nickel-plated brass |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000 Silver |
| Type of fastening | Mounting thread |
| Standard measuring plate | 75 x 75 mm², Fe360 |
Operation & Display:-
| Type of display | LED |
| Number of LEDs | 1 Piece(s) |
Environmental Data:-
| Ambient temperature, operation | -25 … 70 °C |
| Ambient temperature, storage | -25 … 70 °C |
Data Sheet: Pdf
Model No:-
IS 130MM/2NC-25N ; Part no.: 50134109
IS 130MM/2NO-25N ; Part no.: 50134108
IS 130MM/4NC-25N ; Part no.: 50134107
IS 130MM/4NO-25N ; Part no.: 50134106
IS 130 MM/4NC-15N-M12 ; Part no.: 50130003
IS 130 MM/4NO-15N-M12 ; Part no.: 50130002
IS 130 MM/2NC-15N-M12 ; Part no.: 50130001
IS 130 MM/2NO-15N-M12 ; Part no.: 50130000
IS 130 MM/4NC-10E-M12 ; Part no.: 50129999
IS 130 MM/4NO-10E-M12 ; Part no.: 50129998
IS 130 MM/2NC-10E-M12 ; Part no.: 50129997
IS 130 MM/2NO-10E-M12 ; Part no.: 50129996
IS 130 MM/4NC-15N ; Part no.: 50129995
IS 130 MM/4NO-15N ; Part no.: 50129994
IS 130 MM/2NC-15N ; Part no.: 50129993
IS 130 MM/2NO-15N ; Part no.: 50129992
IS 130 MM/4NC-10E ; Part no.: 50129991
IS 130 MM/4NO-10E ; Part no.: 50129990
IS 130 MM/2NC-10E ; Part no.: 50129989
IS 130 MM/2NO-10E ; Part no.: 50129988
