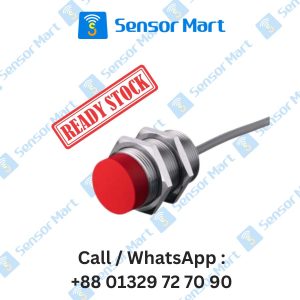

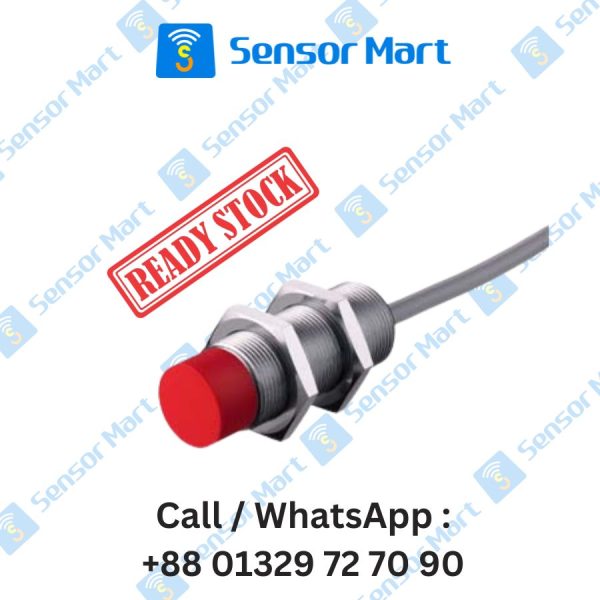

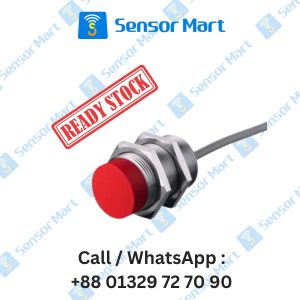

Leuze Inductive Proximity Sensor IS 118MM/4NC-16N , 50129978
Basic Data:-
| Series | 118 |
| Typ. operating range limit Sn | 16 mm |
| Operating range Sa | 0 … 12.8 mm |
Electrical Data:-
| Protective circuit | Overload protection Polarity reversal protection Short circuit protected |
Performance Data:-
| Supply voltage UB | 10 … 30 V, DC |
| Residual ripple | 10 %, From UB |
| Open-circuit current | 0 … 10 mA |
| Temperature drift, max. (in % of Sr) | 10 % |
| Repeatability, max. (in % of Sr) | 1 % |
| Switching hysteresis | 15 % |
Outputs:-
| Number of digital switching outputs | 1 Piece(s) |
Switching Outputs:-
| Voltage type | DC |
| Switching current, max. | 200 mA |
| Residual current, max. | 0.01 mA |
| Voltage drop | ≤ 2 V |
Switching Outputs 1:-
| Switching element | Transistor, PNP |
| Switching principle | NC (normally closed) |
Time Behavior:-
| Switching frequency | 500 Hz |
Connection:-
| Number of connections | 1 Piece(s) |
Connection 1:-
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Sheathing material | PVC |
| Cable color | Black |
| Number of conductors | 3 -wire |
| Wire cross section | 0.35 mm² |
Mechanical Data:-
| Design | Cylindrical |
| Thread size | M18 x 1 mm |
| Dimension (Ø x L) | 18 mm x 55 mm |
| Type of installation | Non-embedded |
| Housing material | Metal |
| Metal housing | Nickel-plated brass |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Housing color | Red, RAL 3000 Silver |
| Type of fastening | Mounting thread |
| Standard measuring plate | 48 x 48 mm², Fe360 |
Operation & Display:-
| Type of display | LED |
| Number of LEDs | 1 Piece(s) |
Environmental Data:-
| Ambient temperature, operation | -25 … 70 °C |
| Ambient temperature, storage | -25 … 70 °C |
Model:-
ISS 118MM/4NC-8E0-M12 ; Part no.: 50144726,ISS 118MM/4NO-16N-M12 ; Part no.: 50136057,ISS 118MM/2NO-16N-M12 ; Part no.: 50136056,ISS 118MM/4NO-16N ; Part no.: 50136055,ISS 118MM/2NO-16N ; Part no.: 50136054,
ISS 118MM/4NO-8E0-M12 ; Part no.: 50136013,ISS 118MM/2NO-8E0-M12 ; Part no.: 50136012,ISS 118MM/4NO-8E0 ; Part no.: 50136011,ISS 118MM/2NO-8E0 ; Part no.: 50136010,IS 118MM/4NC-16N-M12 ; Part no.: 50129987,IS 118 MM/4NO-16N-M12 ; Part no.: 50129985,IS 118MM/2NC-16N-M12 ; Part no.: 50129984,IS 118 MM/2NO-16N-M12 ; Part no.: 50129983,IS 118 MM/4NC-8E0-M12 ; Part no.: 50129982,IS 118 MM/4NO-8E0-M12 ; Part no.: 50129981,IS 118 MM/2NC-8E0-M12 ; Part no.: 50129980,IS 118 MM/2NO-8E0-M12 ; Part no.: 50129979,IS 118MM/4NC-16N ; Part no.: 50129978,IS 118MM/4NO-16N ; Part no.: 50129977,IS 118MM/2NC-16N ; Part no.: 50129961,IS 118MM/2NO-16N ; Part no.: 50129960,IS 118 MM/4NC-8E0 ; Part no.: 50129857,IS 118 MM/4NO-8E0 ; Part no.: 50129856,IS 118 MM/2NC-8E0 ; Part no.: 50129854,IS 118 MM/2NO-8E0 ; Part no.: 50129843,ISS 218MM/2NO-8E0 ; Part no.: 50145949,ISS 218MM/4NO-8E0 ; Part no.: 50145948,ISS 218MM/44-14N-S12 ; Part no.: 50141485,ISS 218MM/44-14N ; Part no.: 50141484,ISS 218MM/44-8E0-S12 ; Part no.: 50141483,ISS 218MM/44-8E0 ; Part no.: 50141482,ISS 218MM/44-8N0-S12 ; Part no.: 50141481,ISS 218MM/44-8N0 ; Part no.: 50141480,ISS 218MM/44-5E0-S12 ; Part no.: 50141479,ISS 218MM/44-5E0 ; Part no.: 50141478,IS 218MM/4NC-12N-S12 ; Part no.: 50135397,ISS 218MM/4NC-8E0-200-S12 ; Part no.: 50135195,ISS 218MM/4NO-8E0-200-S12 ; Part no.: 50135194,IS 218MM/4NO-12N-S12 ; Part no.: 50134095,ISS 218MM/4NC-5E0-S12 ; Part no.: 50129368,IS 218MM/2NC-8E0 ; Part no.: 50129367,IS 218 MM/4NC-12E-S12 ; Part no.: 50129366,IS 218MM/4NC-20N ; Part no.: 50129365,IS 218MM/4NC-8E0 ; Part no.: 50129364,IS 218MM/2NC-8N0-S12 ; Part no.: 50129363,IS 218MM/2NC-8N0 ; Part no.: 50129362,IS 218MM/4NC-8N0-S12 ; Part no.: 50129361,IS 218MM/4NC-8N0 ; Part no.: 50129360,IS 218MM/4NC-5E0-S12 ; Part no.: 50127466,ISS 218MM/4NC-12E-S12 ; Part no.: 50120273,IS 218MM/4NC-5E0 ; Part no.: 50118521,IS 218MM/4NO-12E-S12 ; Part no.: 50114427,ISS 218MM/4NO-5E0 ; Part no.: 50112915,ISS 218MM/4NO-5E0-S12 ; Part no.: 50112293,IS 218MM/2NO-8E0 ; Part no.: 50112104,IS 218MM/2NO-12E ; Part no.: 50111954,IS 218MM/2NO-20N ; Part no.: 50111953,ISS 218MM/2NC-8E0-S12 ; Part no.: 50111745,ISS 218MM/4NC-8E0-S12 ; Part no.: 50111744,
ISS 218MM/4NO-8E0-S12 ; Part no.: 50111743,ISS 218MM/4NC-20N-S12 ; Part no.: 50109711,ISS 218MM/4NO-20N-S12 ; Part no.: 50109710,
IS 218MM/4NO-20N ; Part no.: 50109709,ISS 218MM/2NO-12E-S12 ; Part no.: 50109708,ISS 218MM/4NO-12E-S12 ; Part no.: 50109707,IS 218MM/4NO-12E ; Part no.: 50109706,IS 218MM/2NC-8E0-S12 ; Part no.: 50109705,IS 218MM/2NO-8E0-S12 ; Part no.: 50109704,ISS 218MM/2NO-8E0-S12 ; Part no.: 50109703,IS 218MM/4NC-8E0-S12 ; Part no.: 50109702,IS 218MM/4NO-8E0-S12 ; Part no.: 50109701,IS 218MM/4NO-8E0 ; Part no.: 50109700,IS 218MM/2NO-8N0-S12 ; Part no.: 50109699,IS 218MM/2NO-8N0 ; Part no.: 50109698,IS 218MM/4NO-8N0-S12 ; Part no.: 50109697,IS 218MM/4NO-8N0 ; Part no.: 50109696,IS 218MM/2NO-5E0 ; Part no.: 50109694,IS 218MM/4NO-5E0-S12 ; Part no.: 50109693,IS 218MM/4NO-5E0 ; Part no.: 50109692,IS 218FM/4NC.5-5E0 ; Part no.: 50138121,IS 218FM/2NO.5-5E0 ; Part no.: 50128172,IS 218FM/2NO.5-5E0-S12 ; Part no.: 50128171,IS 218FM/4NO.5-5E0 ; Part no.: 50128170,IS 218FM/4NO.5-5E0-S12 ; Part no.: 50128169,IS 218FM/4NO.5F-20N-S12 ; Part no.: 50109734,IS 218FM/4NO.5F-10E-S12 ; Part no.: 50109732,IS 218MM/1NO.3-5E0 ; Part no.: 50128152,IS 218MM/1NC.3-5E0 ; Part no.: 50128151.
