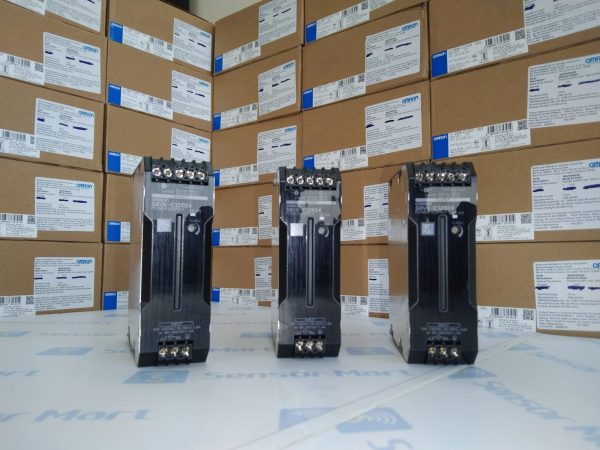

S8VK-C12024 Omron Power Supply
♦ Cost-effective Single Phase Power Supply.
♦ Universal input and Safety standards for worldwide applications.
♦ Space-saving Compact Design.
• Universal input for worldwide applications: 100 to 240 VAC (85 to 264 VAC).
• DC input can be available: 90 to 350 VDC.
• Operation temperature range: –25 to 60 °C.
• Compact Dimension for small space.
• Flexible installation by special mounting brackets.
• Safety standards:UL508/62368-1, CSA C22.2 No.107.1/62368-1
EN62477-1, EN62368-1.
• EMS: Conform to EN61204-3,EMI: EN55011 Class A.
Specifications
| Type | Book type |
| Mounting method | DIN rail |
| Phase | Single |
| Power output | 120 W |
| Efficiency | 89 % |
| Output voltage | 24 V |
| Rated output current | 5 A |
| Temperature range | -25-60 °C |
| Terminal | Screw |
| Communication port(s) | None |
| Alarm function | – |
| Number of output branches | 1 |
| Rated supply voltage at AC 50 Hz | 100-240 V |
| Allowable supply voltage AC | 85-264 V |
| Allowable supply voltage DC | 90-350 V |
| Product Width (unpacked) | 40 mm |
| Product Height (unpacked) | 125 mm |
| Product Depth (unpacked) | 113 mm |
