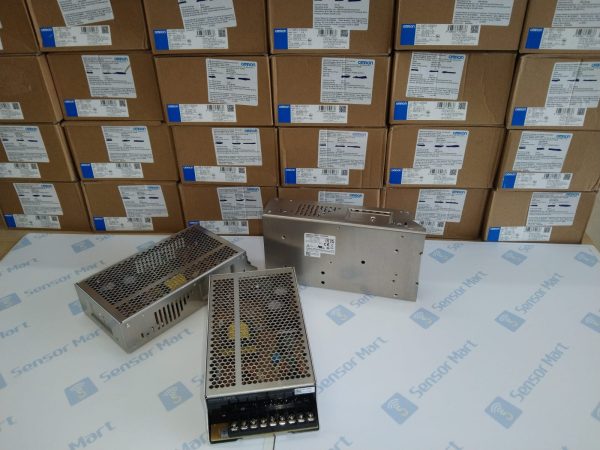

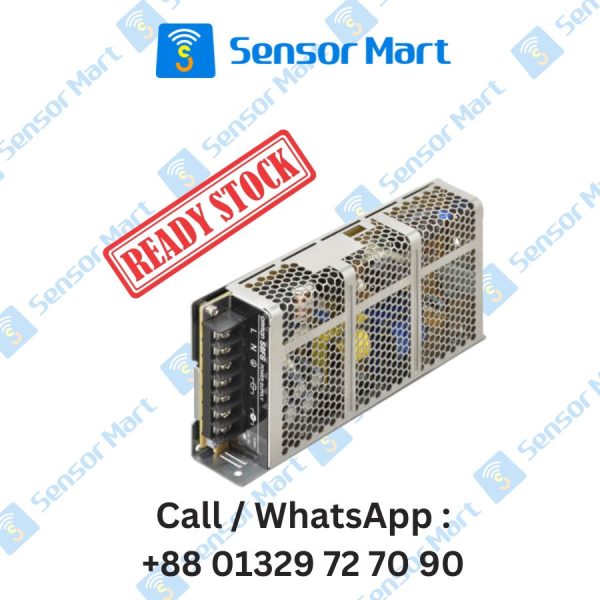

S8FS-C15024 Omron Power Supply
♦ High Reliability at a Reasonable Cost.
♦Reliable.
♦Basic Power Supplies That Contribute to Stable Equipment Operation.
• High Reliability: Enhanced abnormal overvoltage
resistance and lightning surge resistance for stable
operation even with an unstable input voltage.
• Long Life: Japanese 105°C electrolytic capacitors are used
to achieve stable quality and long life.
• Wide Input Ranges: 100 to 120 VAC and 200 to 240 VAC
• Full Lineup: Models are available for the main output
voltages and capacities used in FA applications.
• Global Standards: Conforms to CE (all models), Approved
for UL (all models) and CCC (15 to 150-W models).
• Easy mounting to DIN Rails with Mounting Brackets.
Specifications:-
| Type | Metal frame |
| Mounting method | Direct mounting |
| Phase | Single |
| Power output | 150 W |
| Efficiency | 87 % |
| Output voltage | 24 V |
| Rated output current | 6.5 A |
| Temperature range | -20-60 °C |
| Features | Terminal block facing upward |
| Terminal | Screw |
| Communication port(s) | None |
| Alarm function | – |
| Number of output branches | 1 |
| Rated supply voltage at AC 50 Hz | 100-240 V |
| Allowable supply voltage AC | 90-264 V |
| Allowable supply voltage DC | 254-373 V |
| Product Width (unpacked) | 97 mm |
| Product Height (unpacked) | 38 mm |
| Product Depth (unpacked) | 199 mm |
